AEAM5KB6.5

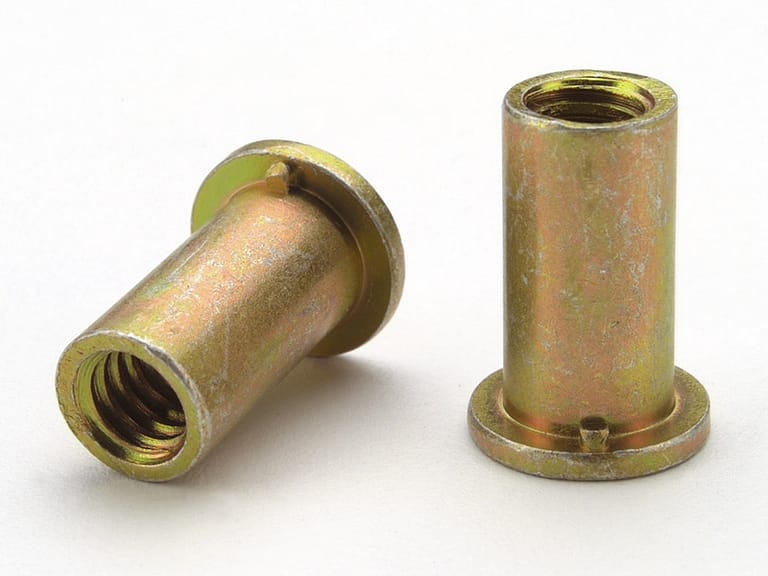

Flathead Threaded Insert – Closed End Keyed
AEAM5KB6.5
Flathead Threaded Insert – Closed End Keyed
- Designed for high load applications. Designed for high load applications. Available with rib, key or full hex features for high torque applications.
Specifications
- Thread Size X Pitch
- M5 x 0.8
- Standard Material
- 6053 Aluminum or 6061 Aluminum
- Standard Finish
- Anodize – Clear, Anodized in accordance with MIL-A-8625, Class 1 plus lubricant
- Identification Mark
- 3 Rad.
- Weight per 1000_lb
- 3.4
- Product Category
- Flathead Threaded Insert – Closed End Keyed
- CAD Supplier
- PennEngineering® (Atlas®)
- CADPartID
- 103648
- Fastening
- Uninstalled
- ATLAS products Grip Range
- 5.00mm, 5.00mm – 6.50mm, 6.50mm
- Base Panel Material
- Aluminum, Brass, Copper, Hard Steel, Stainless Steel, Steel
- Brand
- ATLAS
- Fastener Characteristics
- Threaded Internal
- Installation Equipment/Method
- Hand Tools
- Product Type
- Blind Threaded Inserts
- Technology Type
- Riveting

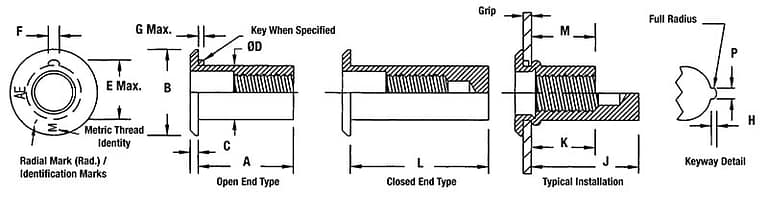

- B ± 0.38_mm
- 11.17mm
- C Nom._mm
- 1.22mm
- E Max._mm
- 8.73mm
- F + 0.13_mm
- 1.85mm
- G Max._mm
- 0.58mm
- H – Keyway Height_mm
- 1.70 – 1.75mm
- Install Drill Size Ref._mm
- 7.20mm
- Install Hole Size Max._mm
- 7.30mm
- Install Hole Size Min._mm
- 7.20mm
- J Ref._mm
- 15.60mm
- K Ref._mm
- 10.09mm
- L ± 0.38_mm
- 24.50mm
- øD – 0.1_mm
- 7.13mm
- P – Keyway Width + 0.08_mm
- 2.06mm
- Pull Up Factor_mm
- 2.40mm
