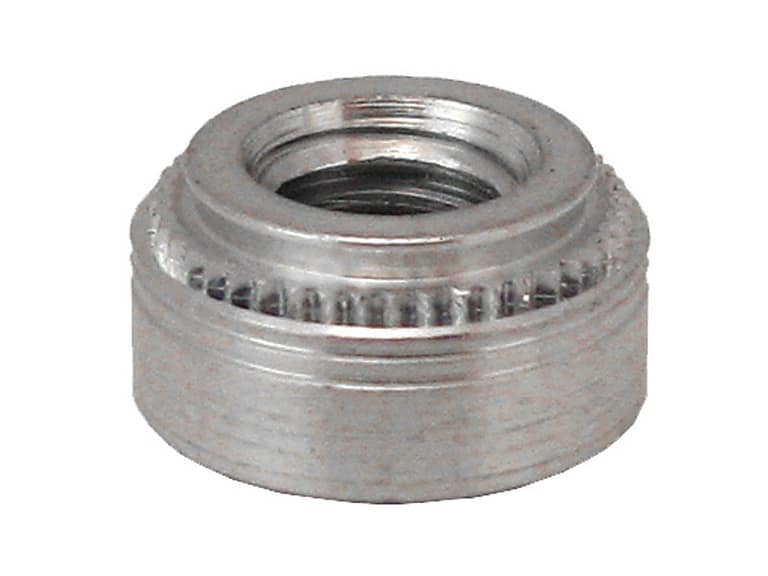

CLA-M2-1
Self-Clinching Nuts – Type CLA
CLA-M2-1
Self-Clinching Nuts – Type CLA
NUT, PLAIN, ALUMINIUM
Specifications
- Thread Code
- M2
- Shank Code
- 1
- For Use in Sheet Hardness
- HRB 50 / HB 89 or less
- Product Category
- Self-Clinching Nuts – Type CLA – Metric
- Thread Type
- Internal
- Hole Size in Sheet +.003 / +0.08mm_mm
- 4.22mm

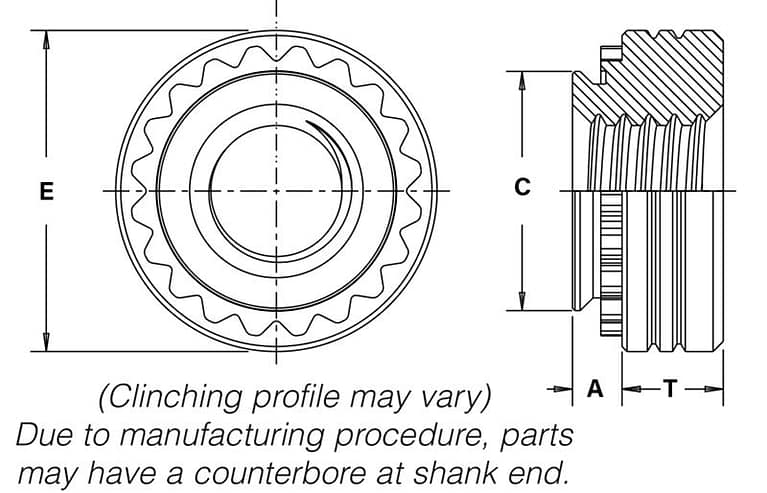

- E ± 0.25_mm
- 6.35mm
- Hole Size in Sheet + 0.08_mm
- 4.22mm
- Min. Dist. Hole C/L to Edge_mm
- 4.8mm
- C Max._mm
- 4.2mm
- T ± 0.25_mm
- 1.5mm
