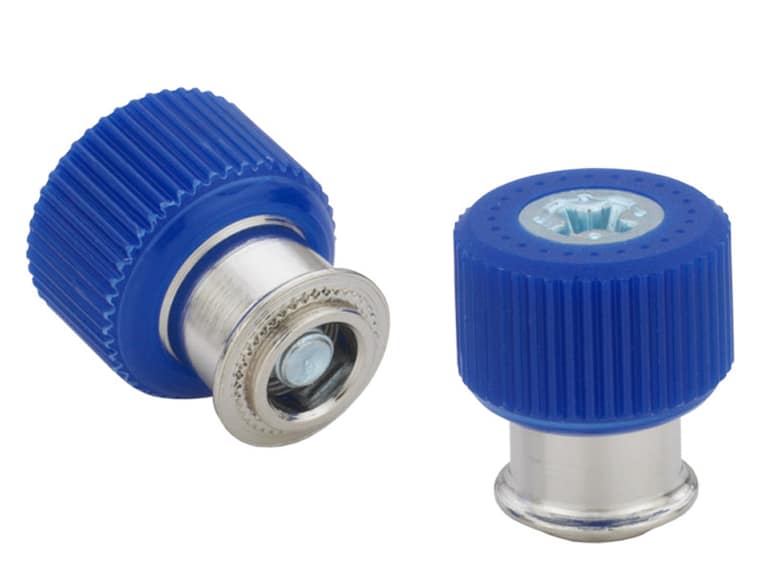

PF11PM-M3-0N
Large Knob, Spring-loaded – PEM C.A.P.S.
PF11PM-M3-0N
Large Knob, Spring-loaded – PEM C.A.P.S.
- Colored access panel screws.
Specifications
- Thread Code
- M3
- Thread Size X Pitch
- M3 x 0.5
- Material Knob
- PC/ABS (UL 94V-0, halogen-free)
- Material Retainer
- Heat-Treated Carbon Steel
- Material Screw
- Heat-Treated Carbon Steel
- Material Spring
- 300 Series Stainless Steel
- Finish Retainer
- Bright Nickel over Copper Flash per ASTM B689
- Finish Screw
- Zinc plated per ASTM B633, SC1 (5µm), Type III, colorless
- Finish Spring
- Natural Finish
- For Use in Sheet Hardness
- HRB 80 or Less (Hardness Rockwell “B” Scale) / HB 150 or Less (Hardness Brinell)
- Driver Size
- #2 Phillips
- Product Category
- Large Knob, Spring-loaded – PEM C.A.P.S.
- CAD Supplier
- PennEngineering® (PEM®)
- Cad View
- Unfastened
- CADPartID
- 102737
- Thread Type
- PF11PM
- Application Type
- Datacom, Industrial, Telecom
- Base Panel Material
- Aluminum, Steel
- Brand
- PEM
- Fastener Characteristics
- Threaded External
- Industry
- Datacom & Telecom, Industrial & Commercial
- Installation Equipment/Method
- C-Frame Manual Feed
- Product Type
- Panel Fasteners
- Technology Type
- Self-Clinching
- Unit (Metric/Unified)
- Metric

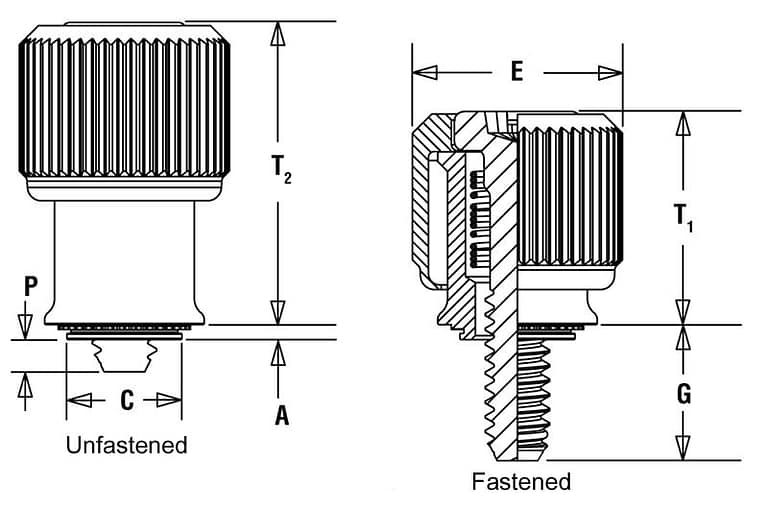

- E ± 0.25_mm
- 10.59mm
- Hole Size in Sheet + 0.08_mm
- 5.56mm
- Knob Color
- Orange
- Min. Dist. Hole C/L to Edge_mm
- 7.11mm
- Min. Float_mm
- 0.51mm
- Min. Sheet Thickness_mm
- 0.92mm
- C Max._mm
- 5.54mm
- T1 Nom._mm
- 7.87mm
- T2 Nom._mm
- 11.43mm
