SKC-F1.5

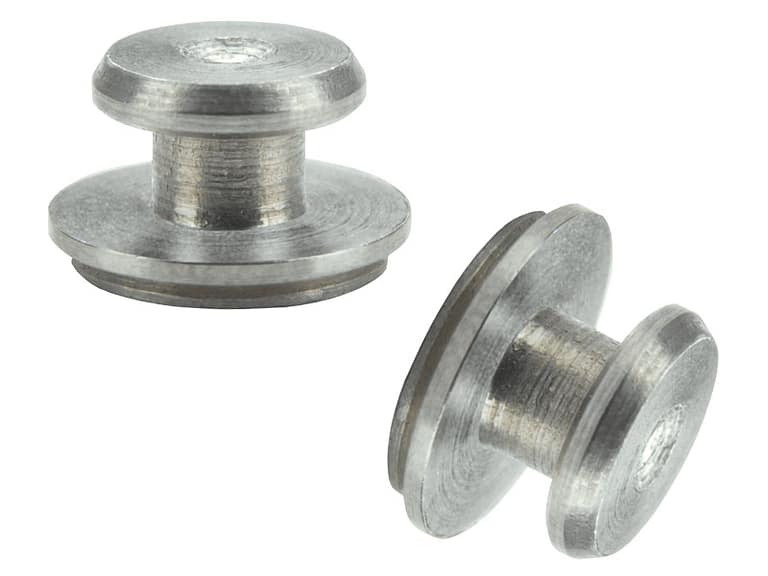

KEYHOLE® Sheet Joining Fasteners Type SKC-F™
SKC-F1.5
KEYHOLE® Sheet Joining Fasteners Type SKC-F™
STANDOFF,KEYHOLE,STAINLESS
Specifications
- Fastener Material
- 300 Series Stainless Steel
- Standard Finish
- Passivated and/or tested per ASTM A380
- Panel 1 (Bottom) Sheet Hardness Max.
- HRB 70 / HB 125
- Product Category
- KEYHOLE® Sheet Joining Fasteners Type SKC-F™ – Metric
- Brand
- PEM
- PEM Product Family
- SKC-F
- Product Type
- OtherFasteners

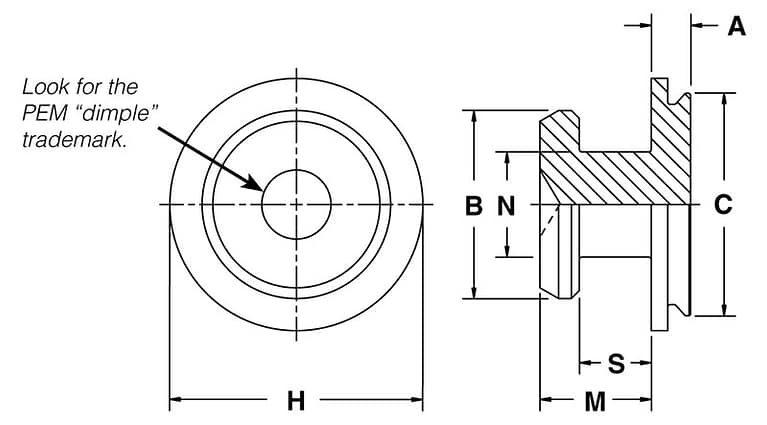

- A Max._in
- 0.039in
- A Max._mm
- 1mm
- D Anvil Hole + .003 – .000_in
- 0.184in
- D Anvil Hole + 0.08_mm
- 4.67mm
- H – Nom._in
- 0.237in
- H – Nom._mm
- 6.02mm
- M Max._in
- 0.108in
- M Max._mm
- 2.75mm
- N ± .003_in
- 0.099in
- N ± 0.08_mm
- 2.5mm
- C Max._in
- 0.212in
- C Max._mm
- 5.39mm
- Panel 1 (Bottom) Edge Distance C1 Min._in
- 0.15in
- Panel 1 (Bottom) Edge Distance C1 Min._mm
- 3.8mm
- Panel 1 (Bottom) Mounting Hole B + .003 – .000_in
- 0.213in
- Panel 1 (Bottom) Sheet Thickness Min._in
- 0.04in
- Panel 1 (Bottom) Sheet Thickness Min._mm
- 1mm
- Panel 2 (Top) Mounting Hole A1 Nom._in
- 0.059in
- Panel 2 (Top) Mounting Hole A1 Nom._mm
- 1.5mm
- Panel 2 (Top) Mounting Hole A2 ± .003_in
- 0.118in
- Panel 2 (Top) Mounting Hole A2 ± 0.08_mm
- 3mm
- Panel 2 (Top) Mounting Hole A3 ± .003_in
- 0.197in
- Panel 2 (Top) Mounting Hole A3 ± 0.08_mm
- 5mm
- Panel 2 (Top) Mounting Hole A4 Min._in
- 0.148in
- Panel 2 (Top) Mounting Hole A4 Min._mm
- 3.75mm
- Panel 2 (Top) Thickness Range_in
- .057 to .064in
- Panel 2 (Top) Thickness Range_mm
- 1.45 to 1.62mm
- S ± .003_in
- 0.068in
- S ± 0.08_mm
- 1.73mm
Installation & Performance Data
| Type | Test Sheet Material | Installation (lbs.) | Anvil Dim D +.003 -.000 (in.) | Anvil Dim D + 0.08 (mm) | Anvil Dim L Min. (in) | Anvil Dim L Min. (mm) | Anvil Part Number | Body Size – Sheet Code /Part No | Installation (kN) | Punch Part Number | Pushout (N) | Side-Load Force Max. (N) | Test Sheet Thickness | Pushout (lbs.) | Side-Load Force Max. (lbs.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SKC-F | 5052-H34 Aluminum | 0.184 | 4.67 | 0.233 | 5.95 | 8012608 | SKC-F | 4.9 | 975200048 | 533 | 533 | 1.52 mm | |||
| SKC-F | Cold-Rolled Steel | 0.184 | 4.67 | 0.233 | 5.95 | 8012608 | SKC-F | 9.3 | 975200048 | 711 | 822 | 1.52 mm | |||
| SKC-F | 5052-H34 Aluminum | 1100 | 0.184 | 4.67 | 0.233 | 5.95 | 8012608 | SKC-F | 975200048 | .060” | 120 | 120 | |||
| SKC-F | Cold-Rolled Steel | 2100 | 0.184 | 4.67 | 0.233 | 5.95 | 8012608 | SKC-F | 975200048 | .060” | 160 | 185 |
